K9001: 10 Way Analogue Voice (Line) Protector

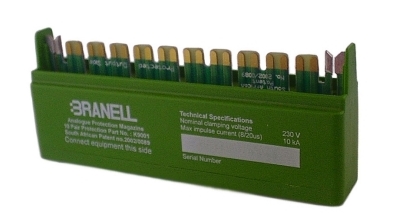

K9001: 10 Way Analogue Voice (Line) Protector The Branell K9001 is an advanced analogue protection magazine compatible for use with LSA plus modules. The product protects up to ten subscriber lines against lightning and power-induced overvoltages and has a fail-safe system to protect connected equipment when the magazine reaches the end of its service life. The K9001 was designed to be both cost-effective and to offer superior surge clamping performance. State of the art hybrid protection components combined with a patented earthing system achieve this aim. The unit also incorporates high quality gold-plated contacts to ensure low contact resistance, label holder for easy line identification and is housed in a flame-retardant enclosure.
MECHANICAL SPECIFICATIONS
Housing:
Dimensions:
Plug type:
Contact type:
PCB:
Gold plating thickness:
Contact type:
Patent:
Testing:
Flame retardant ABS
113x47x22
10-pair Krone module
Routed PCB contact, gold plated
1mm
>2 Micron
PCB earth clip, tin/lead plated over copper subtrate
SA Patent 2002/0089
>101 insertions while electrical and mechanical specifications are valid
TELEPHONE CONNECTION LIGHTNING PROTECTION
Number of pairs protected:
Network operating voltage:
Protection Type:
Nominal clamping voltage:
Maximum peak clamping voltage:
Impulse current capability:
10
150V max (DC supply + AC ring voltage)
Primary and secondary protection
230V
<350V
1 operation @ 10kA per side (8/20 us)
10 operations @ 5kA per side (8/20 us)
ELECTRICAL CHARACTERISTICS
Insertion loss:
CAPACITANCE
Line to earth @100 MHz:
Line to line @ 100 MHz:
INSULATION RESISTANCE Line to line:
Line to earth:
Insertion resistance:
Difference in insertion resistance per line:
Less than 0.25 dB (typical 0.07 dB)
<1nF typically 100pF
<1nF typically 50pF
>10 Mohms (typically >100 Mohms)
>10 Mohms (typically >100 Mohms)
Per line (incl contact resistance) = <0.1 Ohms (typically 30 milli – Ohms)
<0.1 Ohms (typically <10 mili – Ohms)
MAXIMUM RATINGS
Maximum Line current Alternating discharge current simultaneously both lines to ground:
Fail-safe resistance:
>120mA (continuous)
5A per side (50Hz, 1 s, 10 operations)
<1 Ohm
